Reelcraft EA34122 L12D 12 V DC Motor Driven Hose Reel

Reelcraft EA34122 L12D 12 V DC motor driven hose reels are designed for rugged, heavy duty applications requiring long lengths of hose and large storage capacity. All-bolted unitized construction with no welds to fatigue, full flow swivel and heavy gauge steel frame, spool and drum ensure longest service life. Series 30000’s vibration-proof, self-locking fasteners are ideal for industrial or field use such as turf care or pest control.

  • Quality finish and corrosion resistant - Individually powder coated components offer the maximum protection from premature corrosion.
  • Reinforced steel - The robotically welded steel base offers maximum strength and consistent quality.
  • Optional lock pin to prevent spool rotation when the reel is not in use.
  • Leak prevention - The double sealed, special molded o-rings prevent leakage.

Reel Specifications
Part Number EA34122 L12D
Series 30000
Weight (lbs) 84
Hose I.D. (in) 1/2"
Hose O.D. (in)
Hose Length (ft) 200
Pressure (psi) 3000
Hose End (in)
Inlet (in) 1/2 NPT(F)
Reel Outlet (in) 1/2 NPT(F)
Hose Included No
Max Temperature (°F) 250
Fluid Path Materials
Seal Type Buna N
Swivel Material Steel

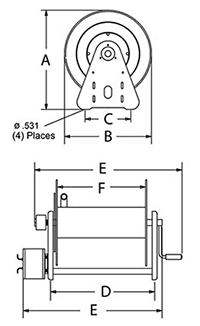

EA34122 L12D Dimensions

A
B
C
D
E
F
20.25"
17.75"
9"
25.75"
37.5"
22"


   Seal Material Compatibility Tables
